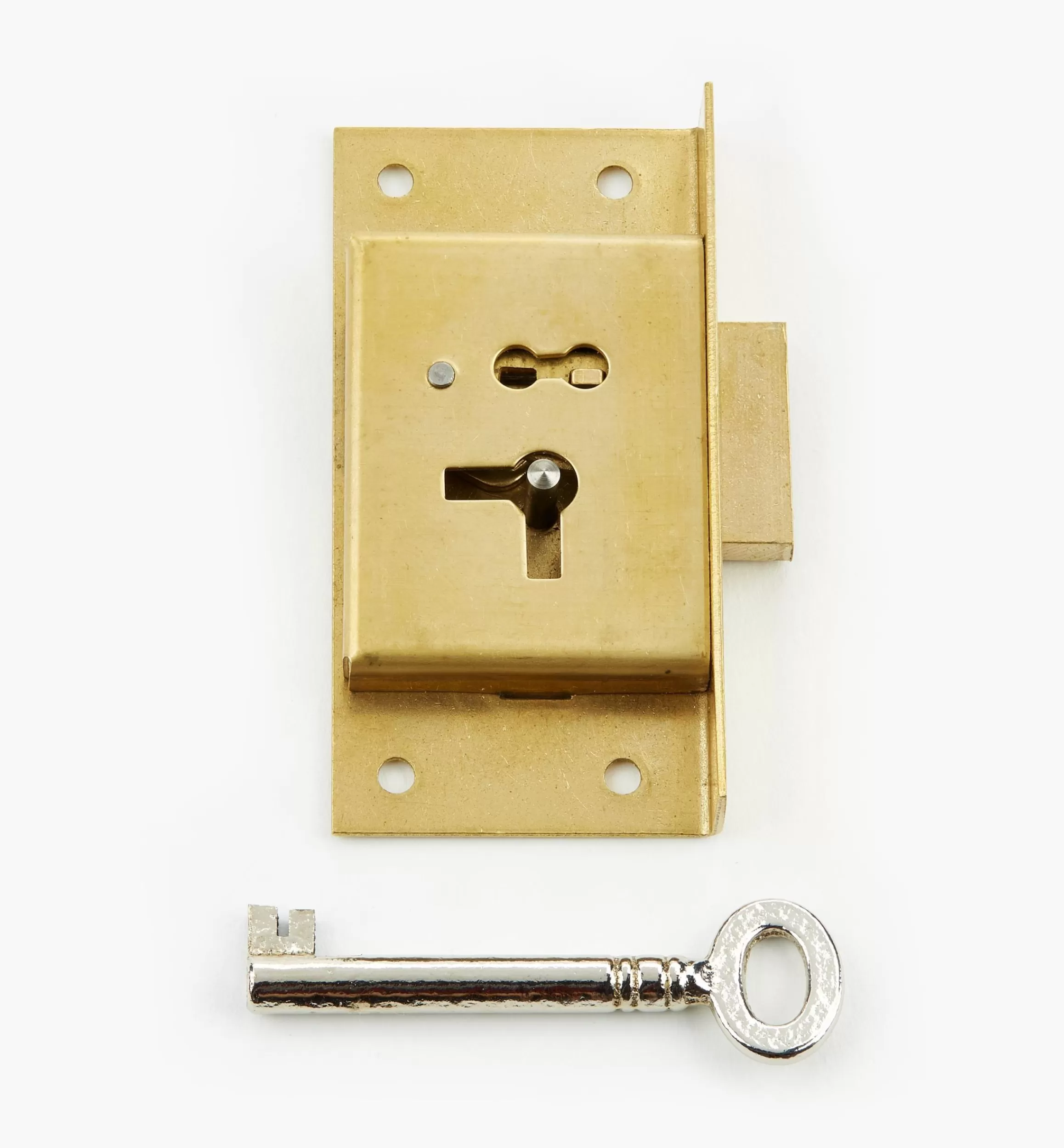

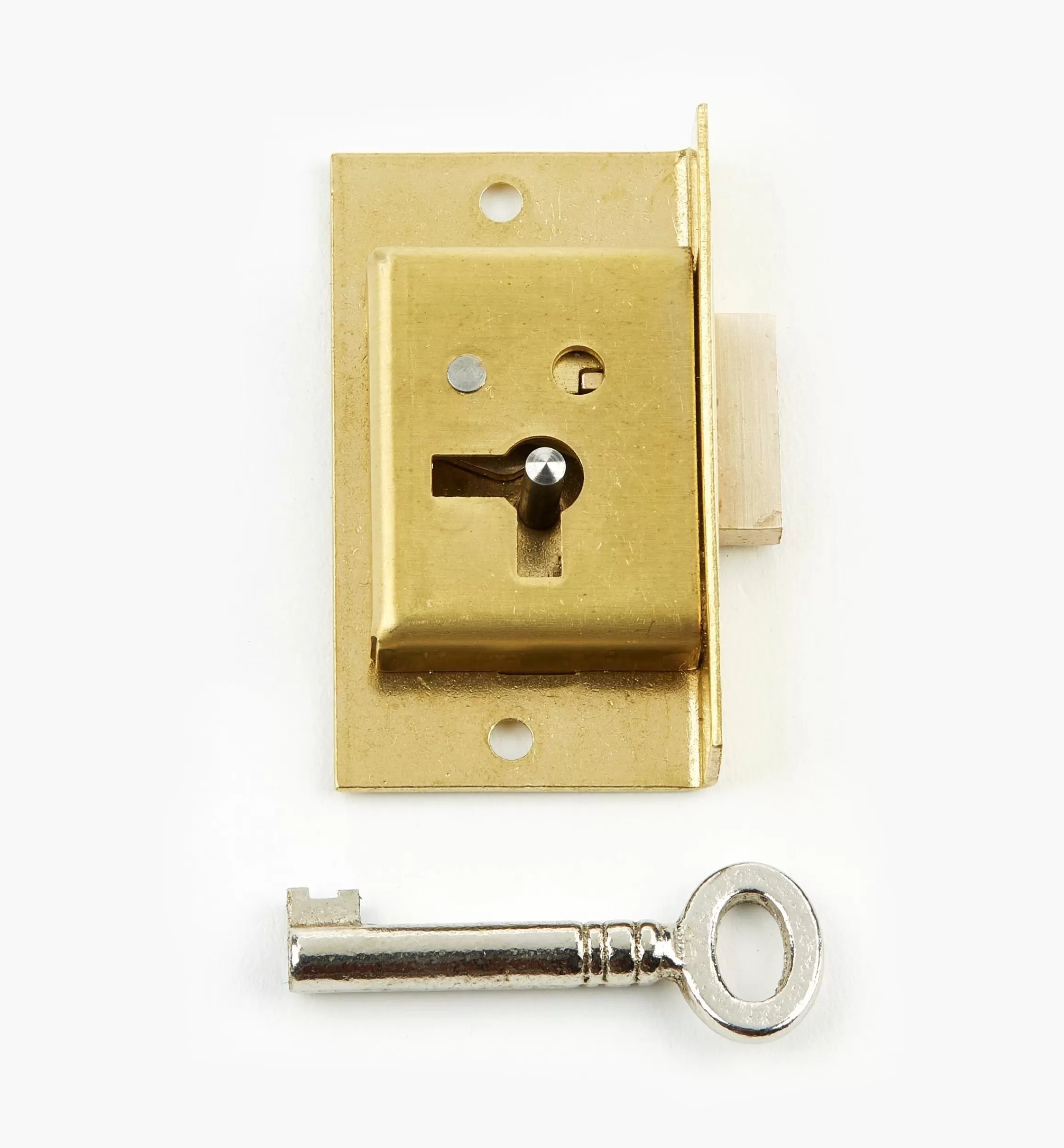

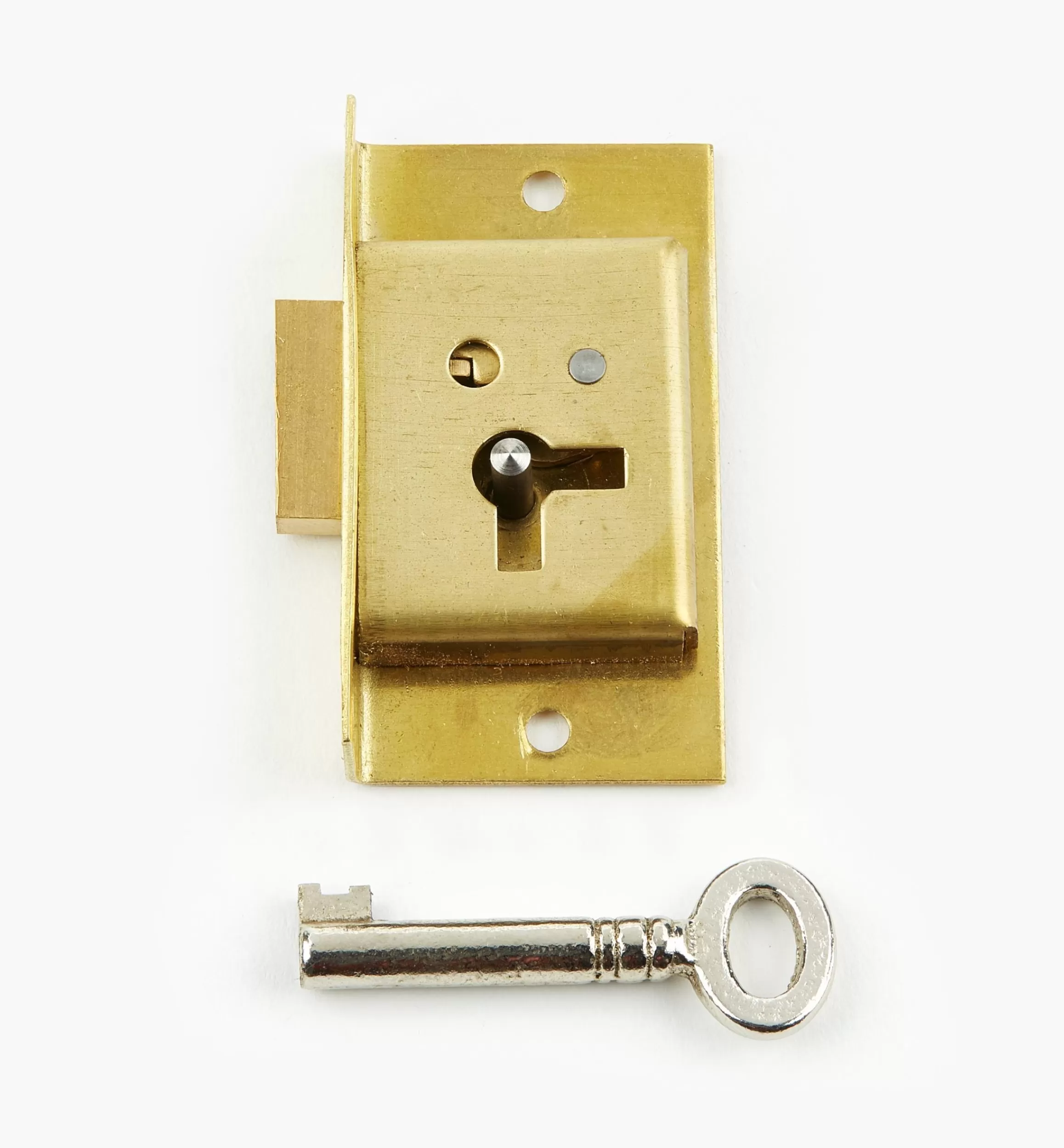

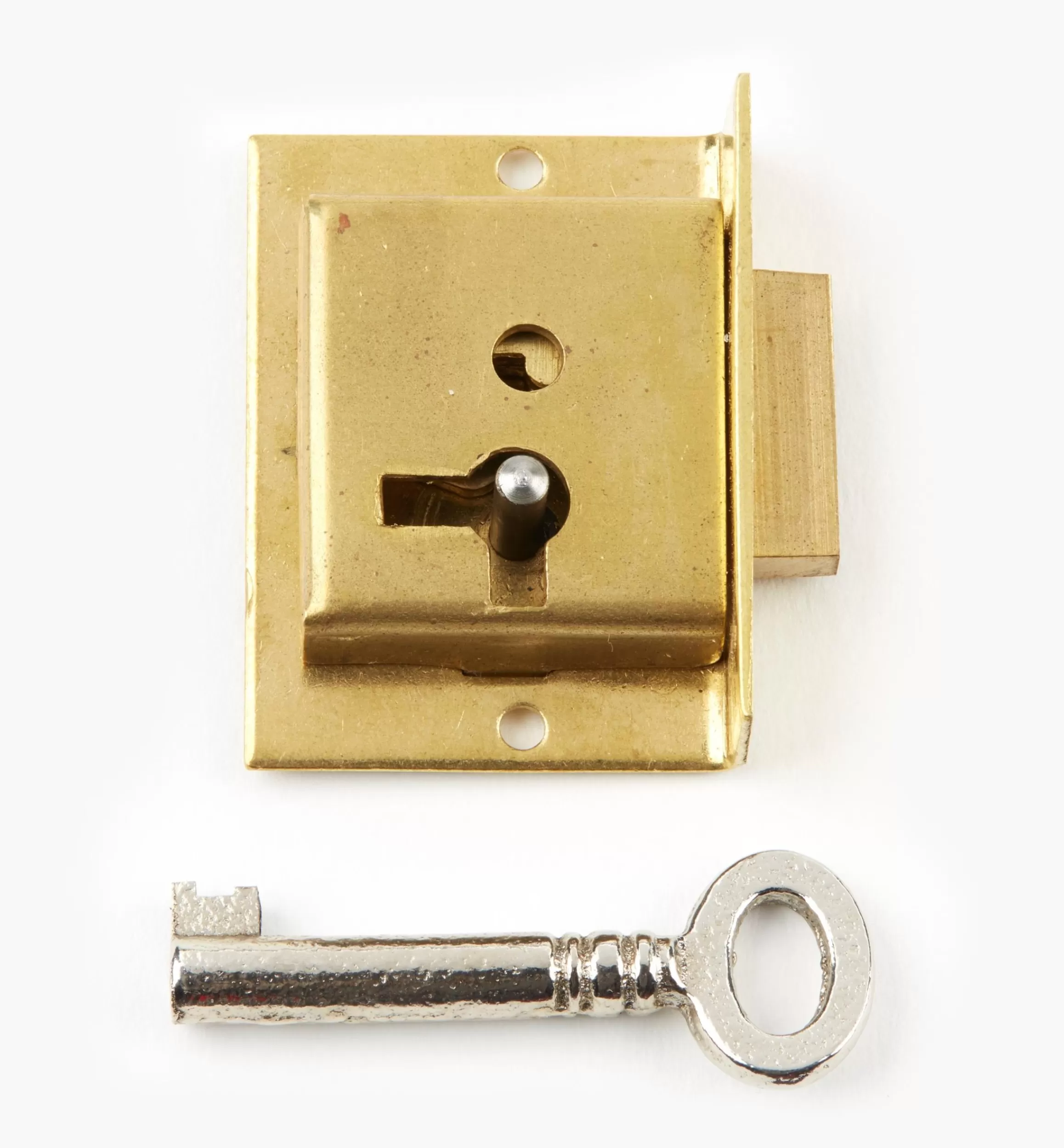

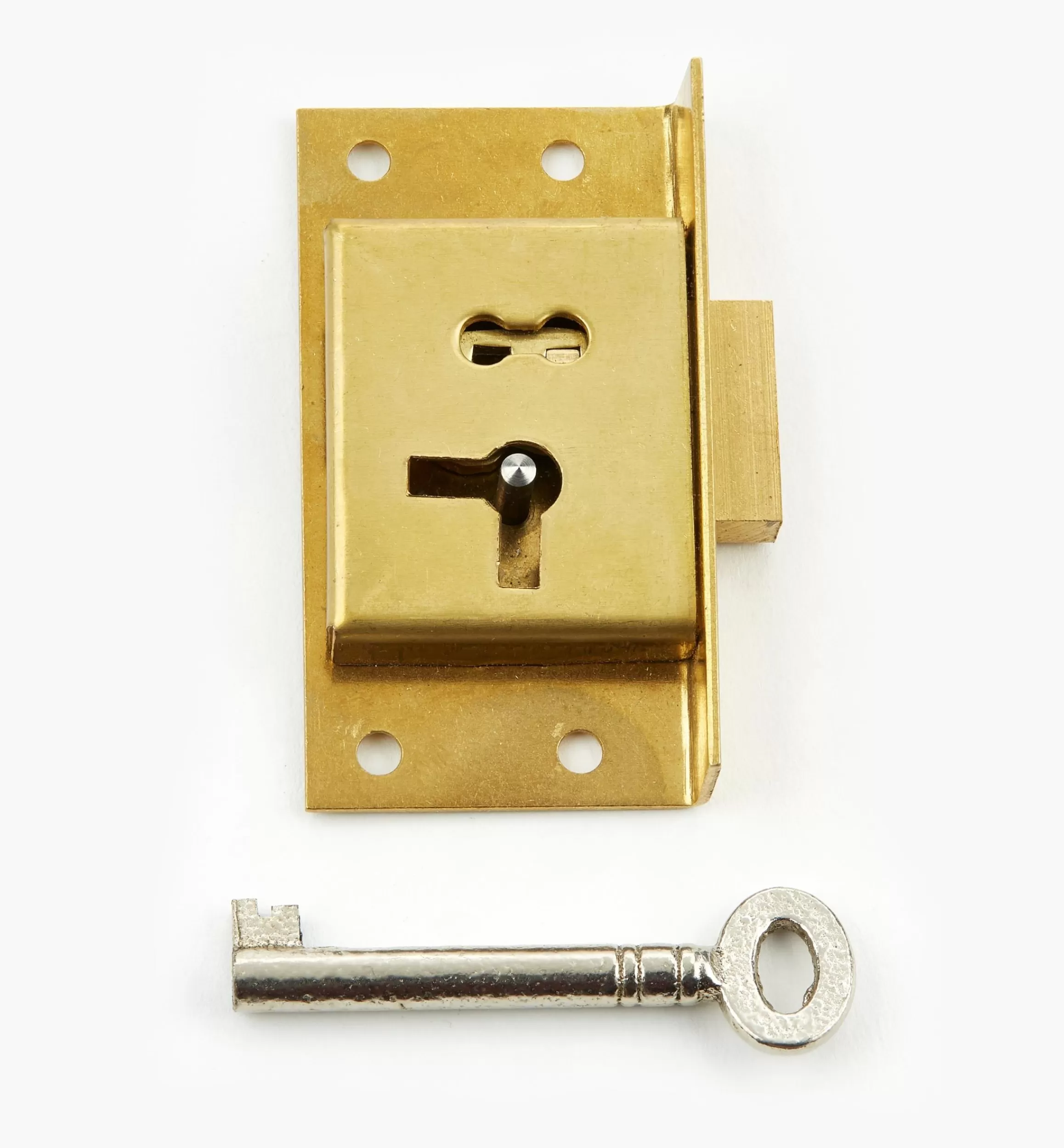

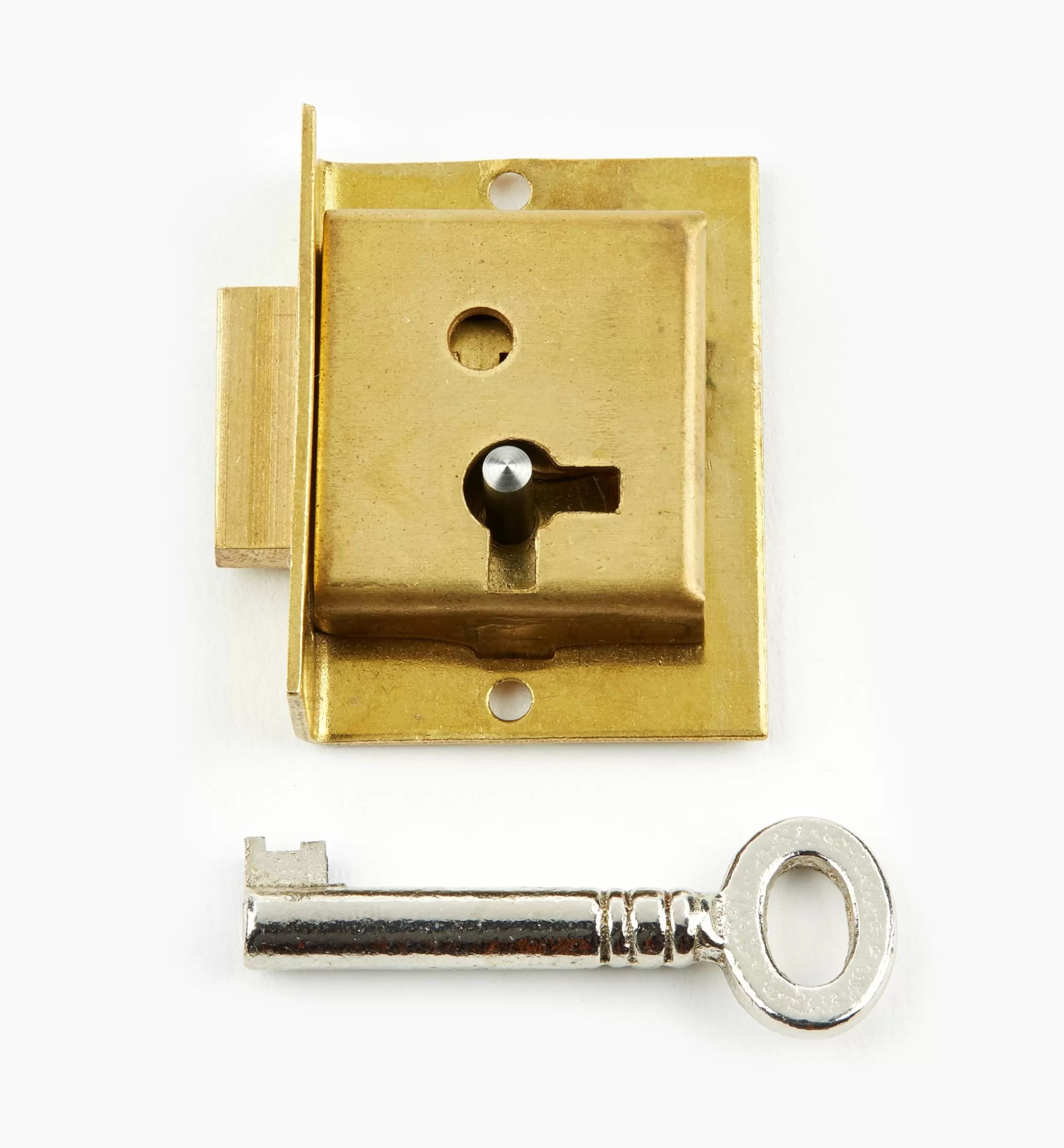

Lee Valley Economy Cut Cupboard Locks

Available as right or left locks, these can also be used in drawers. All brass parts with a sanded selvedge and bolt.

• The 1 1/2″ and 2” wide locks are 1 1/8” deep with a case depth of 3/8” and distance to pin of 1/2″





• The 2 1/2″ wide locks are 1 5/16” deep with a case depth of 7/16” and distance to pin of 5/8″





• The 3″ wide locks are 1 1/2” deep with a case depth of 1/2” and distance to pin of 11/16″

Screws are not included.

• The 1 1/2″ wide locks require #1 screws





• The 2” and 2 1/2″ wide locks require #3 screws





• The 3” locks require #4 screws
