Lee Valley Kreg 720 Pro Pocket-Hole Jig

From the latest generation of Kreg’s pocket-hole joinery system, this sturdy, versatile jig is quick to set up and easy to use, letting you make strong pocket-hole joints in a wide range of applications.

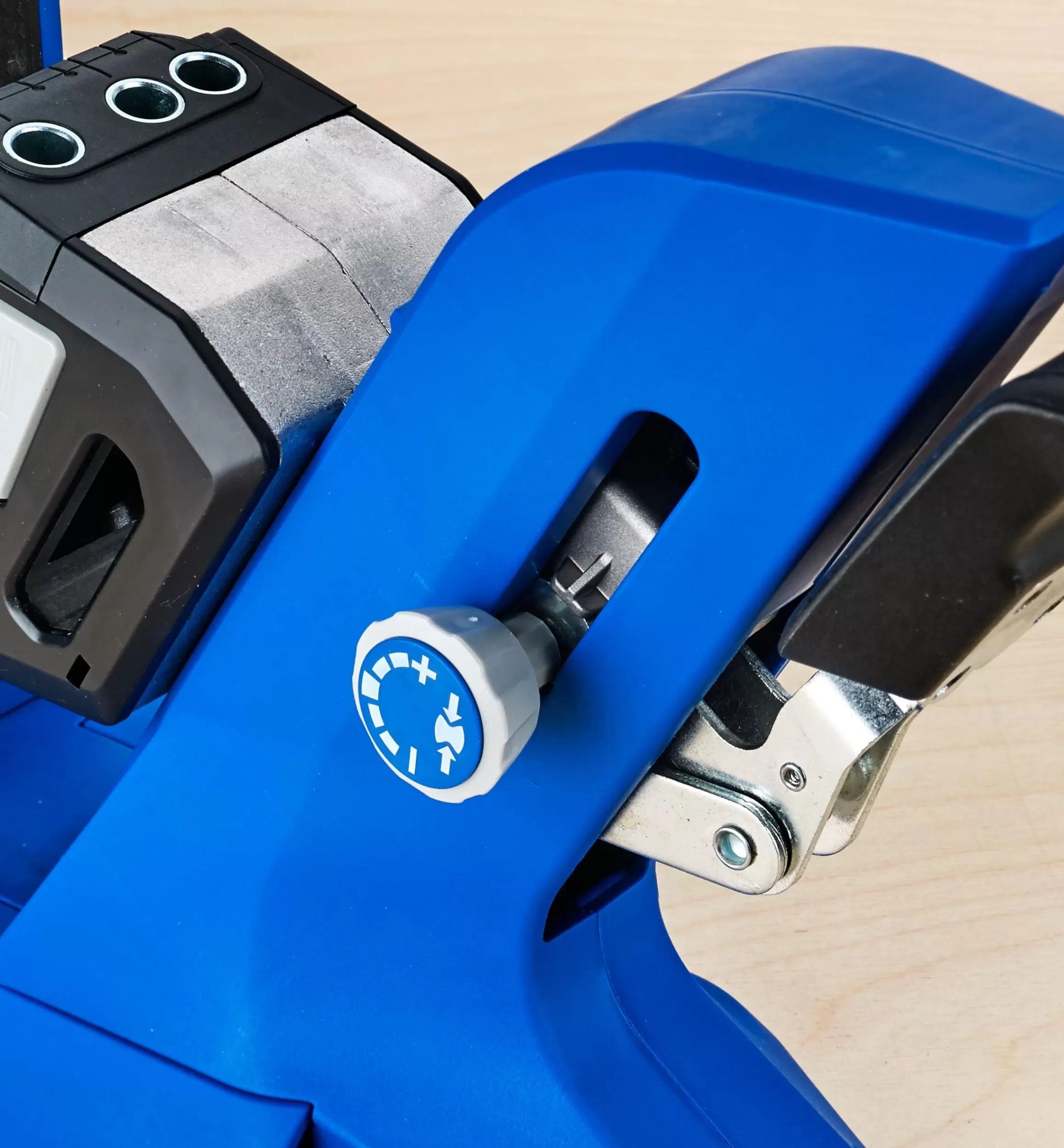

To hold the jig in position while you drill, its built-in lever-operated clamp can be operated one-handed and automatically adjusts for stock thicknesses from 1/2″ to 1 1/2″. The clamp jaws are lined with a non-slip material to prevent shifting in use, and an adjustment knob lets you control the clamping force to permit a firm hold without marring the work. Once set, it automatically maintains the same force regardless of stock thickness, so you can switch workpieces without making adjustments.

Made of glass-reinforced nylon with a steel core for strength, the drill guide block contains three hardened steel bushings that let you space two holes 9/16″, 7/8″ or 1 7/16″ apart, depending on material width.

The jig comes with a 6 1/4″ HSS stepped drill bit that has a 3/16″ diameter by 1/2″ pilot, a 3/8″ diameter counterbore, and a 1/4″ hex shank that’s grooved for use in quick-change chucks. For easy, accurate depth settings, simply align a hole in the supplied depth collar with one of the engraved markings on the drill-bit shank, indicating the correct placement for 1/2″, 3/4″ and 1 1/2″ thick material.

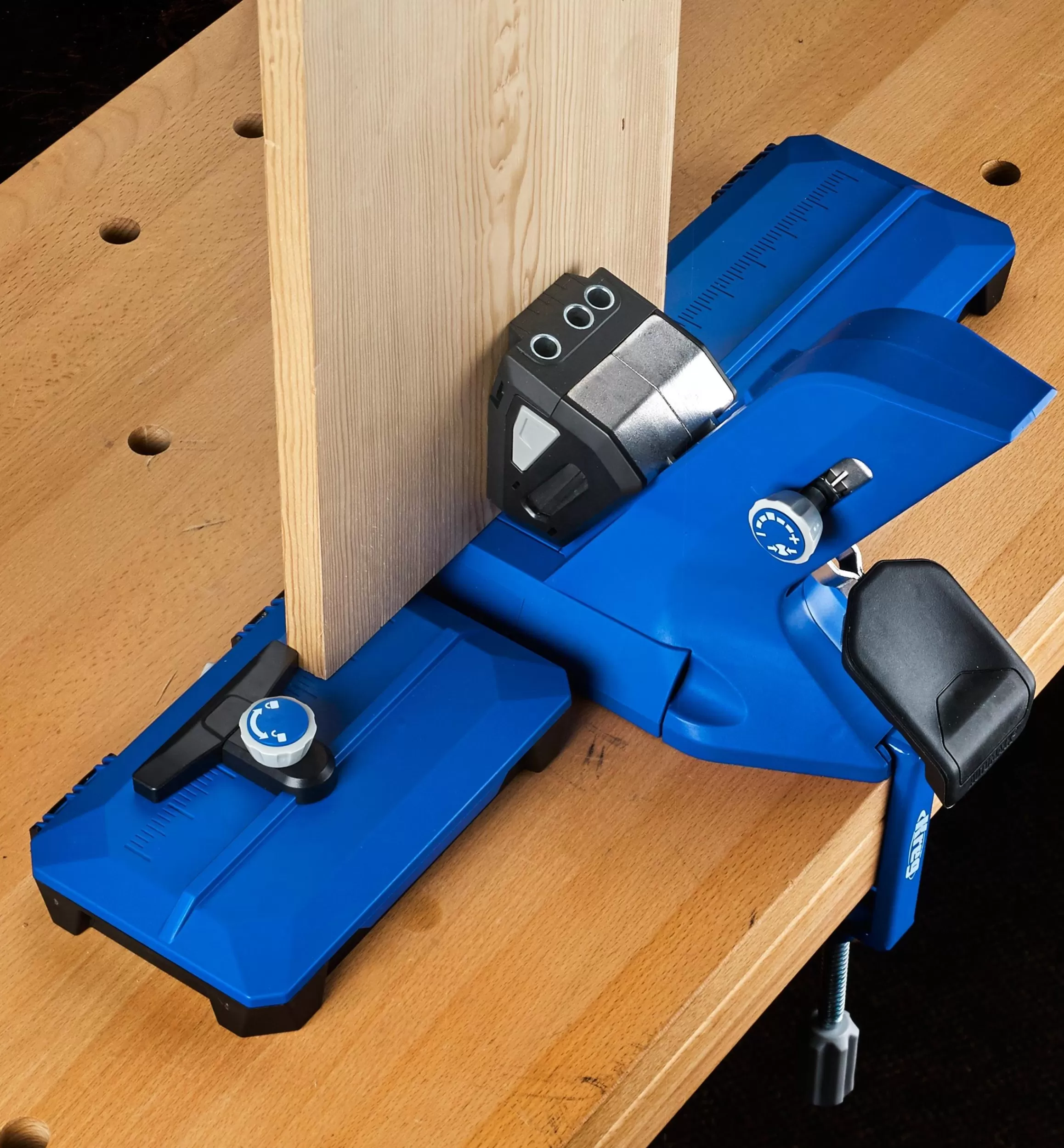

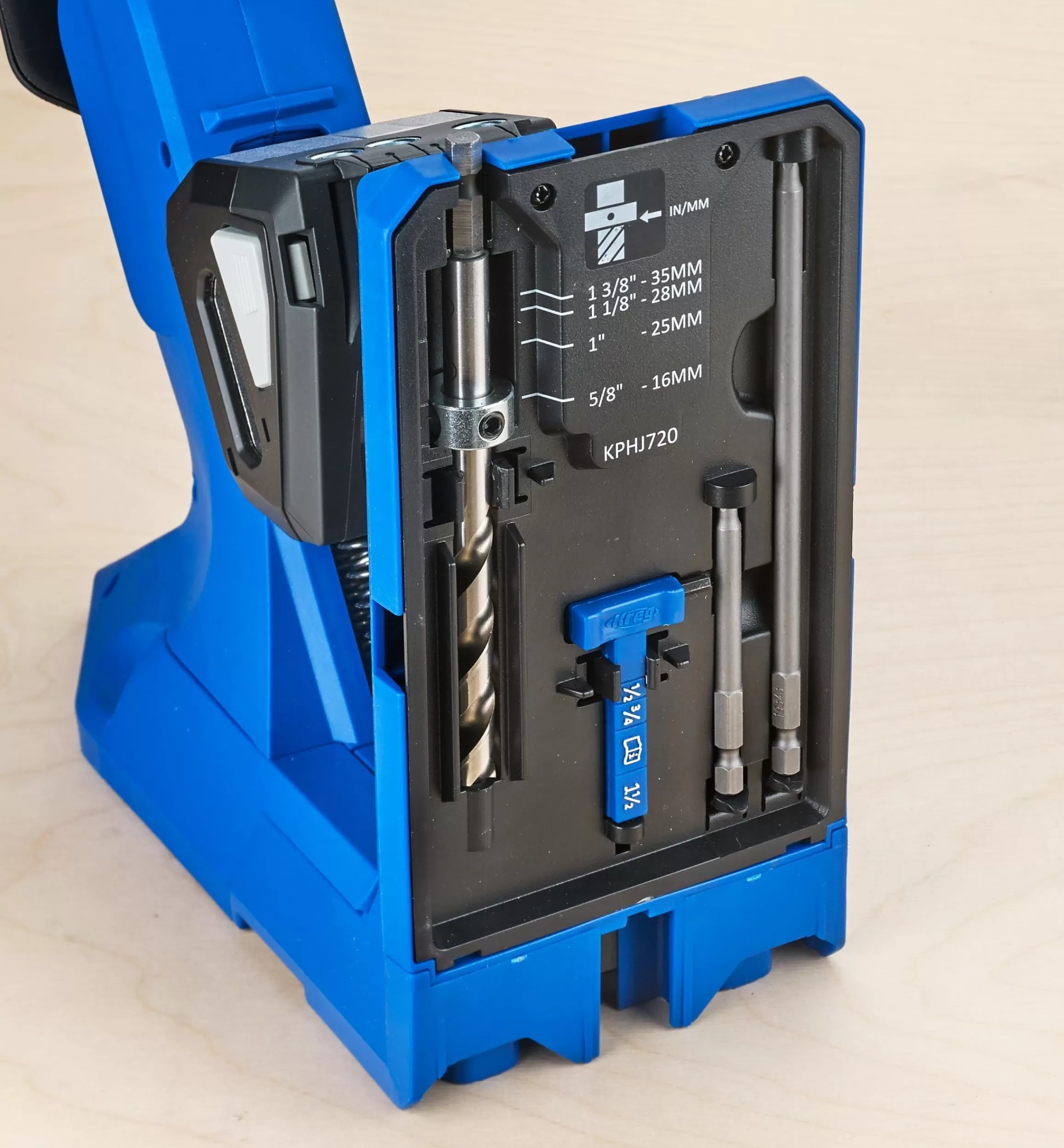

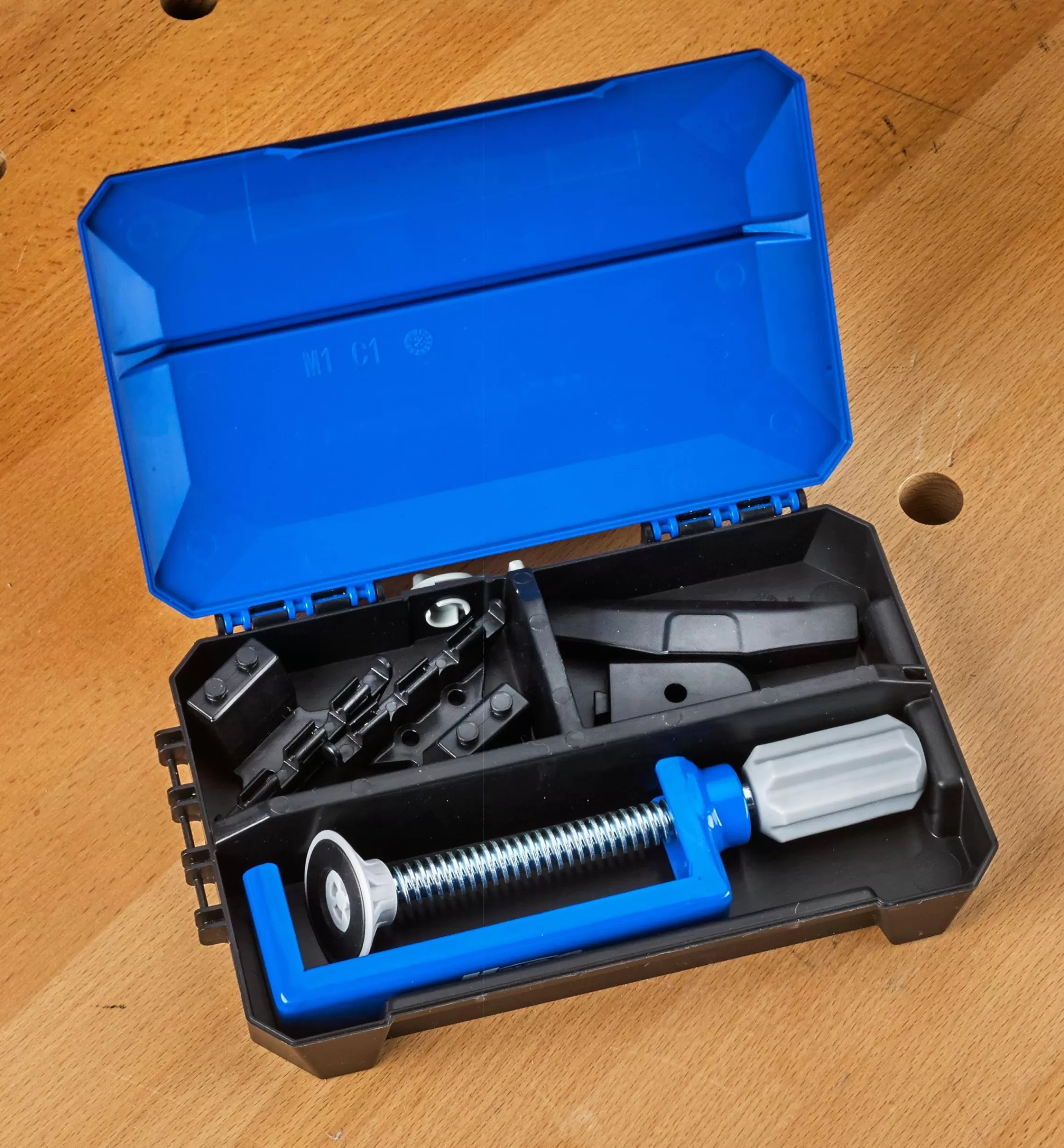

For improved stability when working with sheet goods or other large stock, it also includes two sturdy stock-support wings that simply snap into place on either side of the jig and can be removed just as easily when not needed. The wings have a hinged lid that lets them double as storage boxes for other small accessories such as pocket-hole screws and drill bits. Sliding work stops, which travel on a 6″ track marked in 1/8″ increments on the top of each support wing, can be locked in position to ensure precise, repeatable hole placement up to 8 3/4″ from the edge of a workpiece.

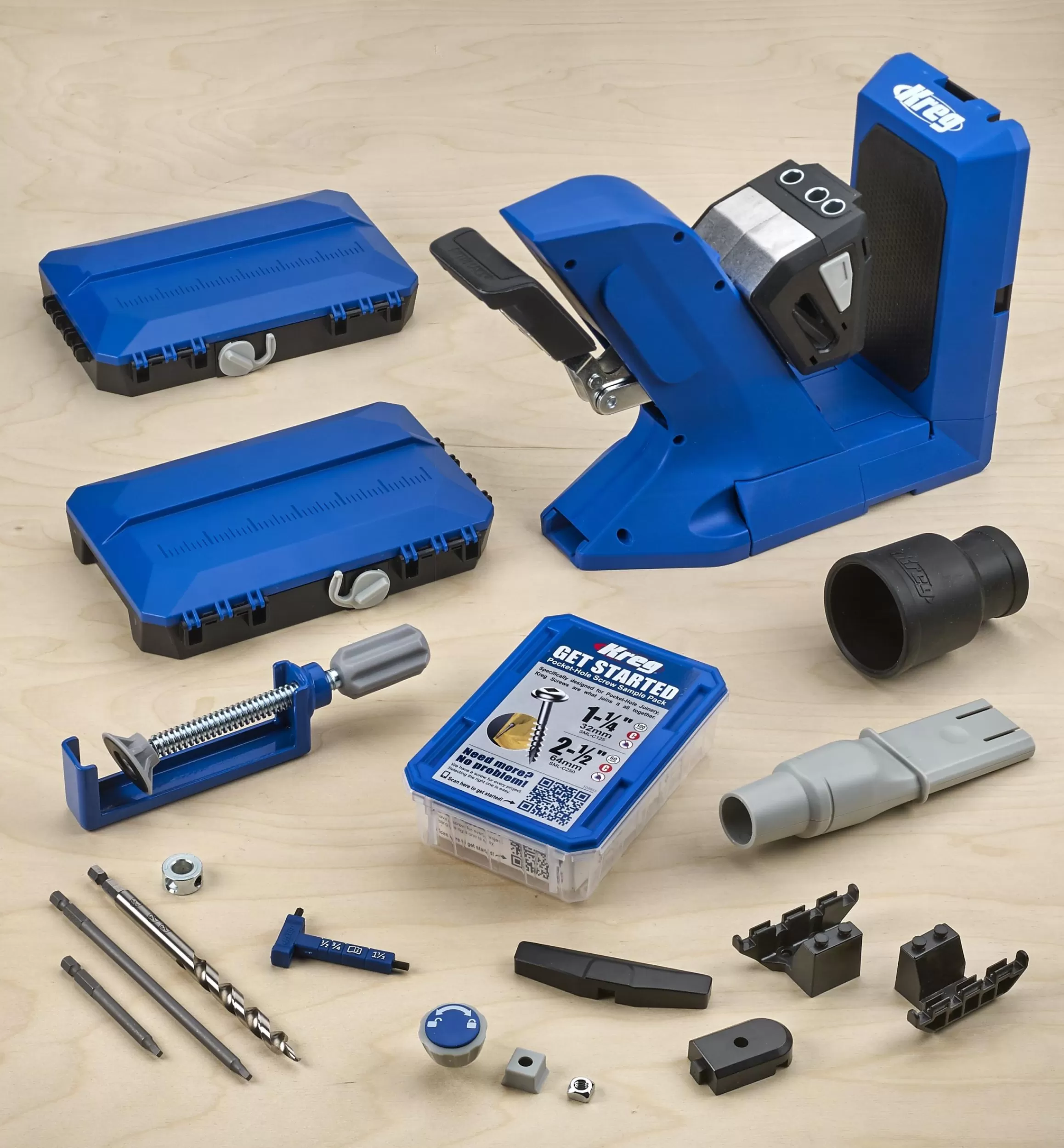

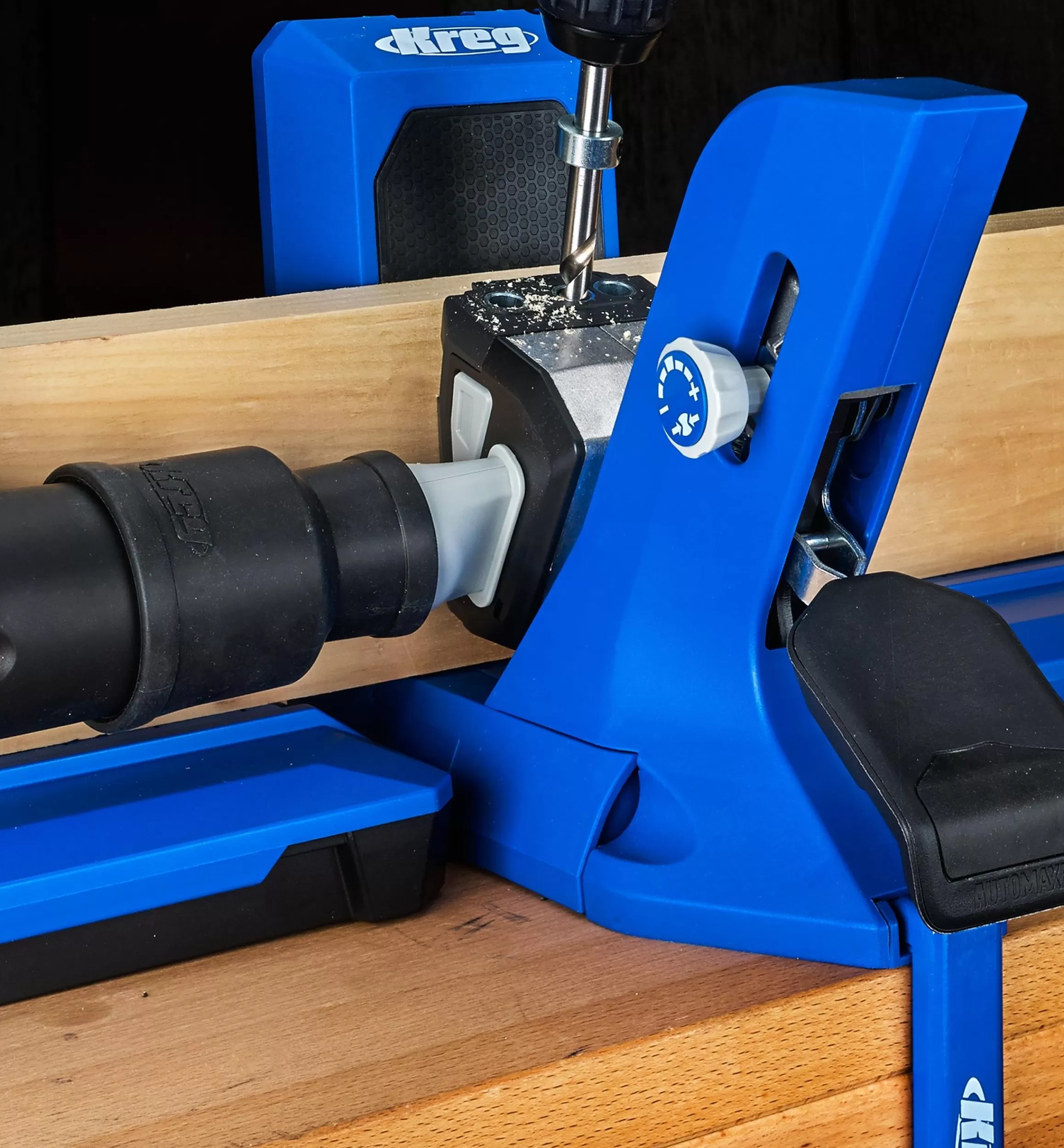

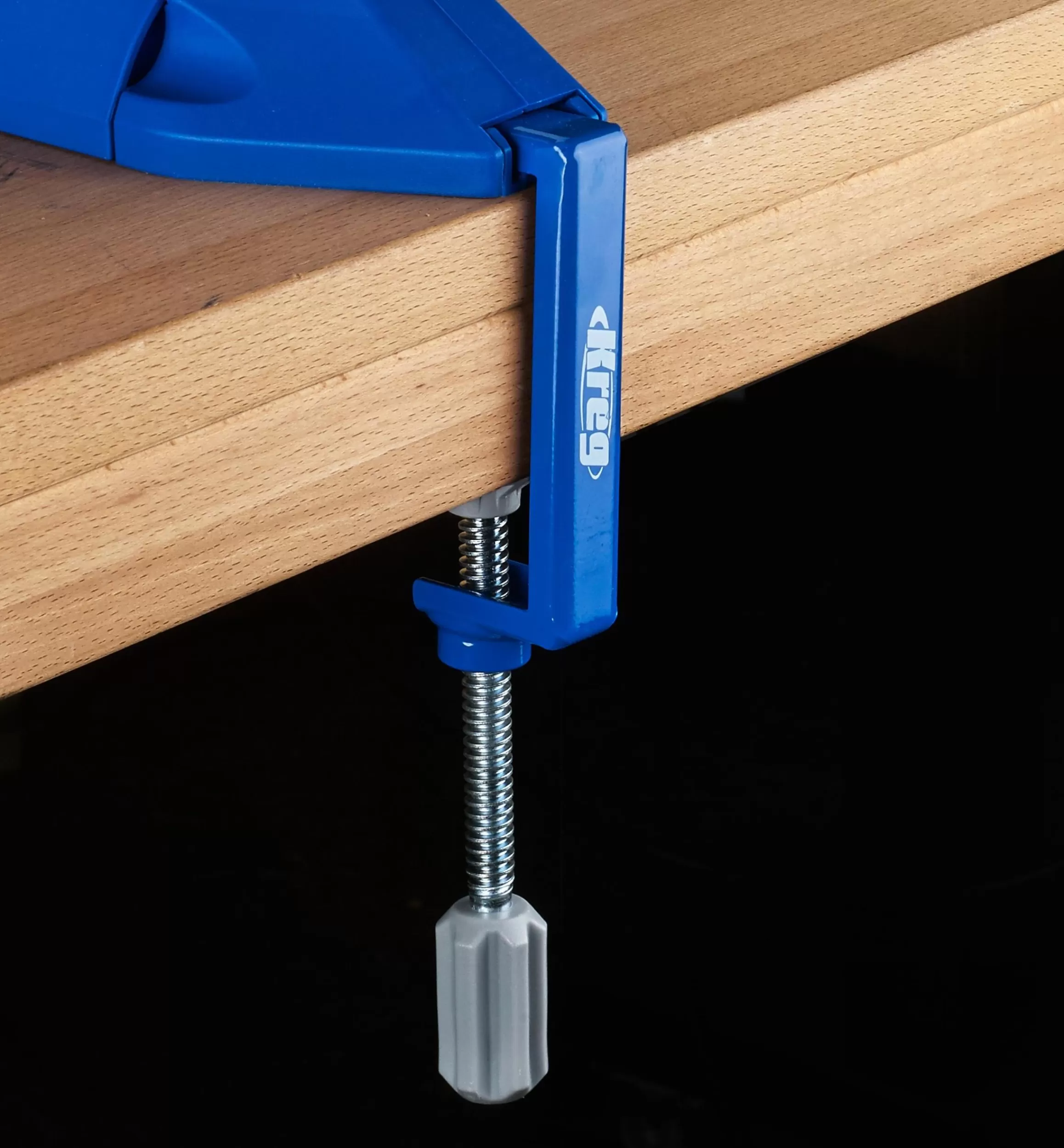

An included snap-in shroud connects directly to a 1 1/4″ vacuum hose and comes with an adapter for connection to a 1-7/8″ or 2 1/2″ hose for easy debris clearance, with a pivoting outlet that lets you orient the hose to avoid obstruction. The jig also comes with a table clamp that can be used to secure the jig to a workbench or other work surface, a combination hex key and material-thickness gauge, two #2 square-recess drivers (6″ and 3″ long), and 160 pocket-hole screws (one hundred 1 1/4″ screws and sixty 2 1/2″ screws).
