Lee Valley Surface-Mount Locks

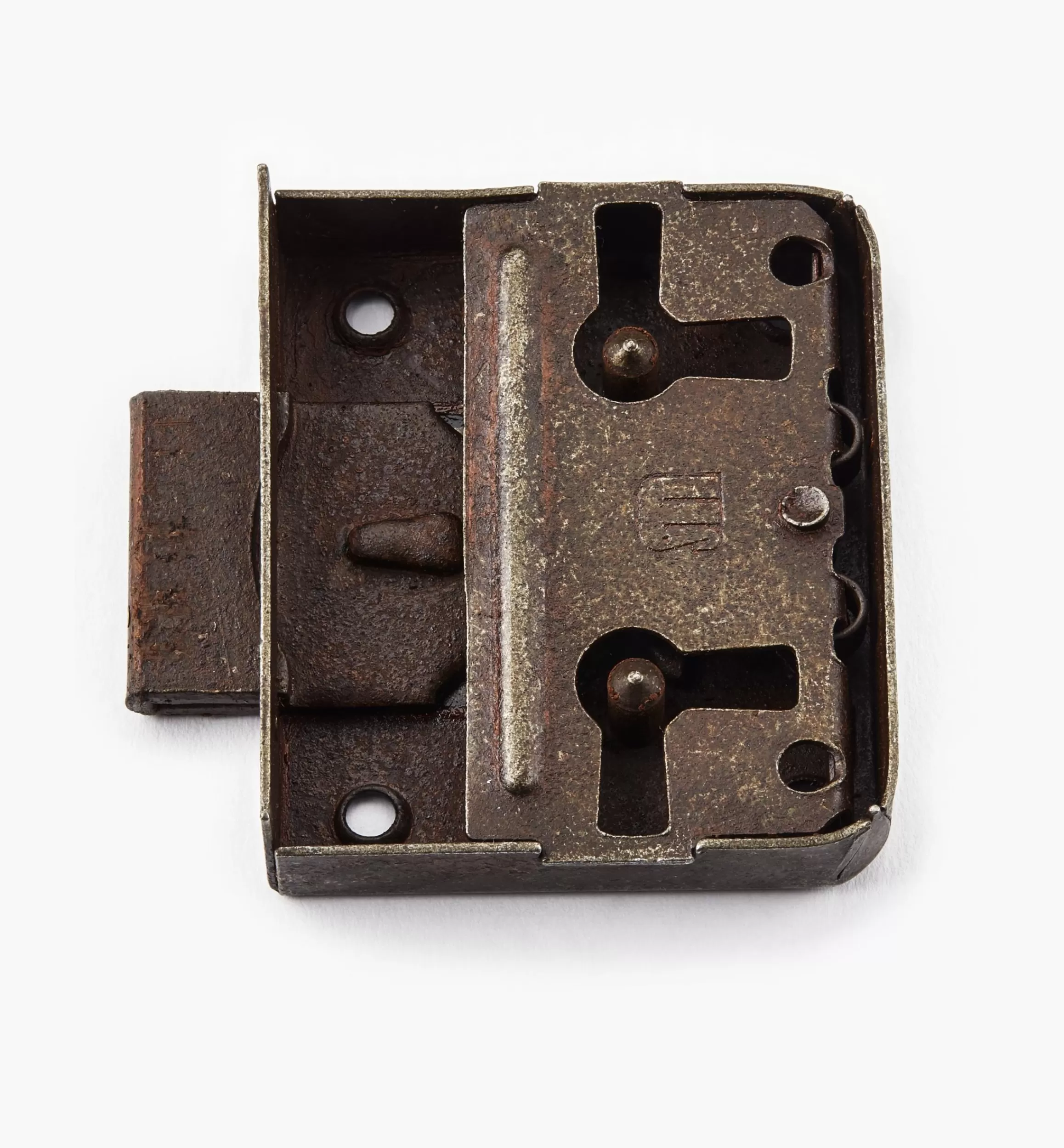

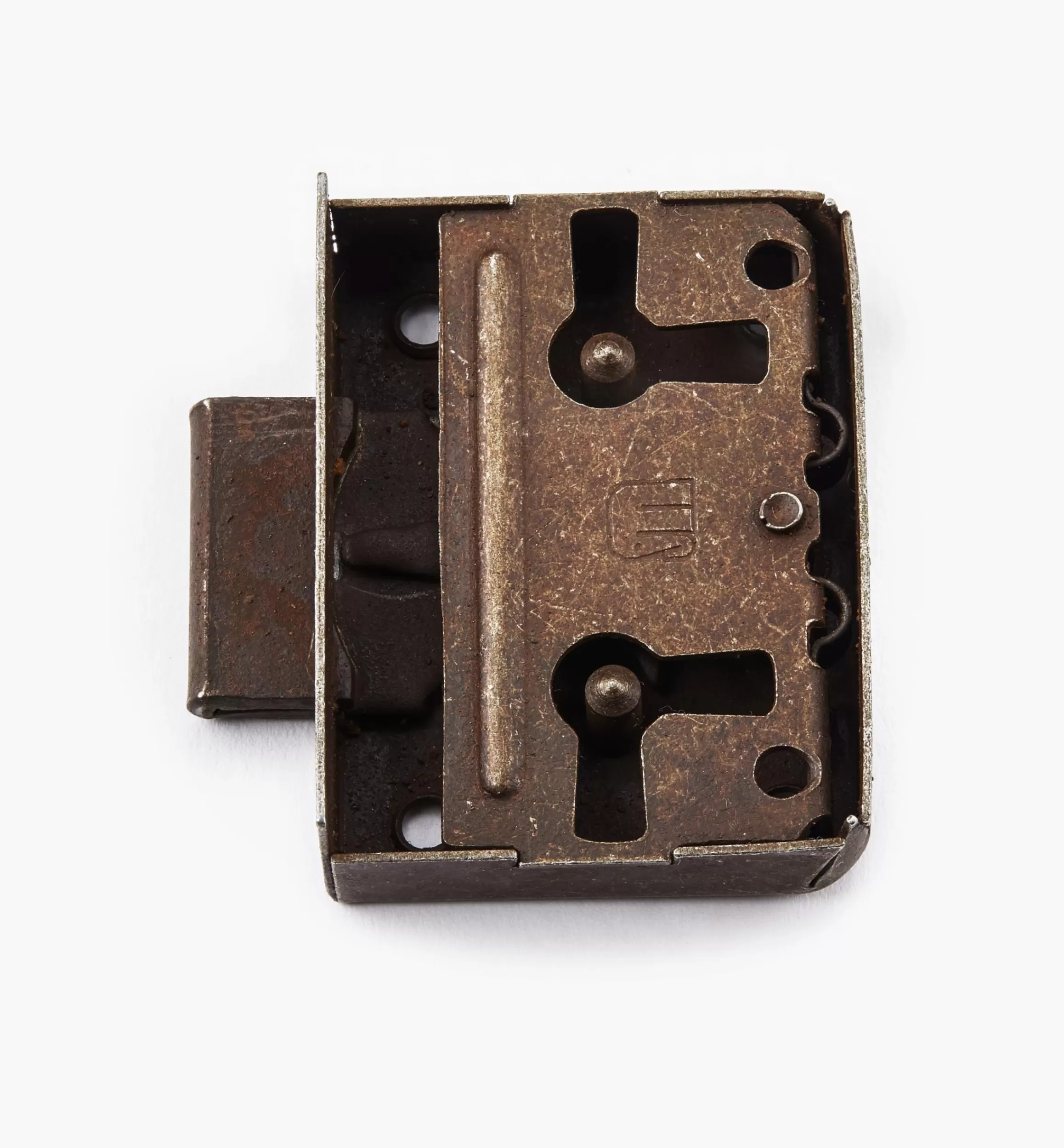

A selection of weathered steel surface-mount distance-to-pin locks, for use on drawers and doors.

The four larger locks have four-way keyholes, while the smallest has a two-way keyhole. When installed, the case projects 3/8″, and overhangs the door/drawer lip by 1/4″. Each mounts with four round-head #3 screws (not included).

All locks have a width of 1 15/16″ and a case depth of 9/16″. Distance to pin varies by depth.

• The 1 3/8″ deep lock has a 5/8″ (15mm) distance to pin
• The 1 1/2″ deep lock has a 13/16″ (20mm) distance to pin
• The 1 11/16″ deep lock has a 1″ (25mm) distance to pin
• The 1 7/8″ deep lock has a 1 3/16″ (30mm) distance to pin
• The 2 1/16″ deep lock has a 1 3/8″ (35mm) distance to pin

Two styles of cast steel key are available separately to pair with these locks.
